Mã hóa DK, đánh dấu từng khoảnh khắc
| Nguồn gốc: | Thượng Hải, Trung Quốc |
|---|---|
| Hàng hiệu: | DIKAI |
| Chứng nhận: | CE; ISO 9001 |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | $500-600 |
| Khu vực in: | 40mm * 3 dòng | Tốc độ in: | tối đa 150 bản in/phút |
|---|---|---|---|
| Dòng in: | tối đa 3 dòng, 20 ký tự/dòng | Cỡ chữ: | Chiều cao 3,5mm * 1,5, 2, 2,5mm (Chiều rộng) |
| Kích thước cuộn mực: | φ36*32, φ36*40mm (đề xuất) | Nguồn điện: | AC 220±10V, 50/60Hz, 130W, 2A |
| Nhiệt độ làm việc: | 4-40oC, độ ẩm 10% - 95% | Điện áp: | Cầu chì 130W,2A |
| Kích thước: | 205mm*162.5mm*124mm | Cân nặng: | 2,2kg |
| Nội dung in: | Ngày MFG/EXP, số lô, số sê-ri, v.v. | loại kích thước: | Loại chữ T:3,5mm*1,5T,2,0T,2,5T(W) |
| Tốc độ in: | tối đa 900PPM, 60 mét/phút | Các thành phần cốt lõi: | Bảng PC |
| Loại điều khiển: | Điện | ||
| Làm nổi bật: | Max 150 Prints/Minute Ink Roll Coder,Max 3 Lines Hot Ink Roll Coder,20 Characters/Line Intermittent Ink Roll Coder |
||

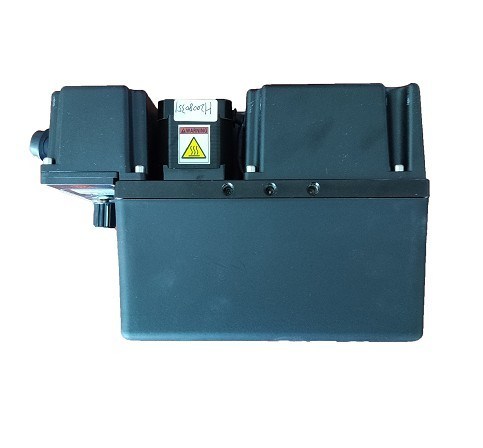

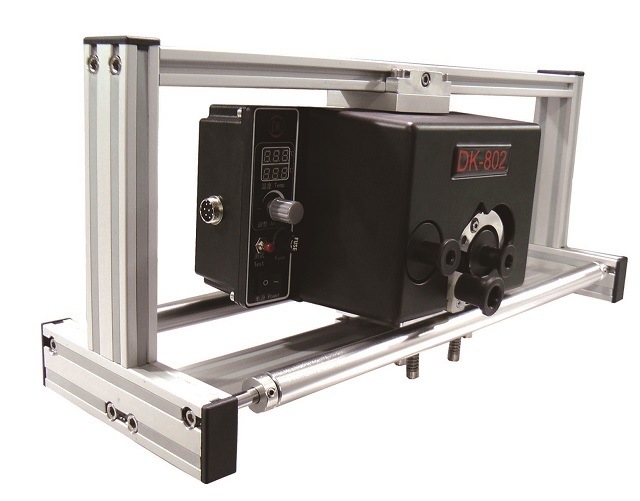

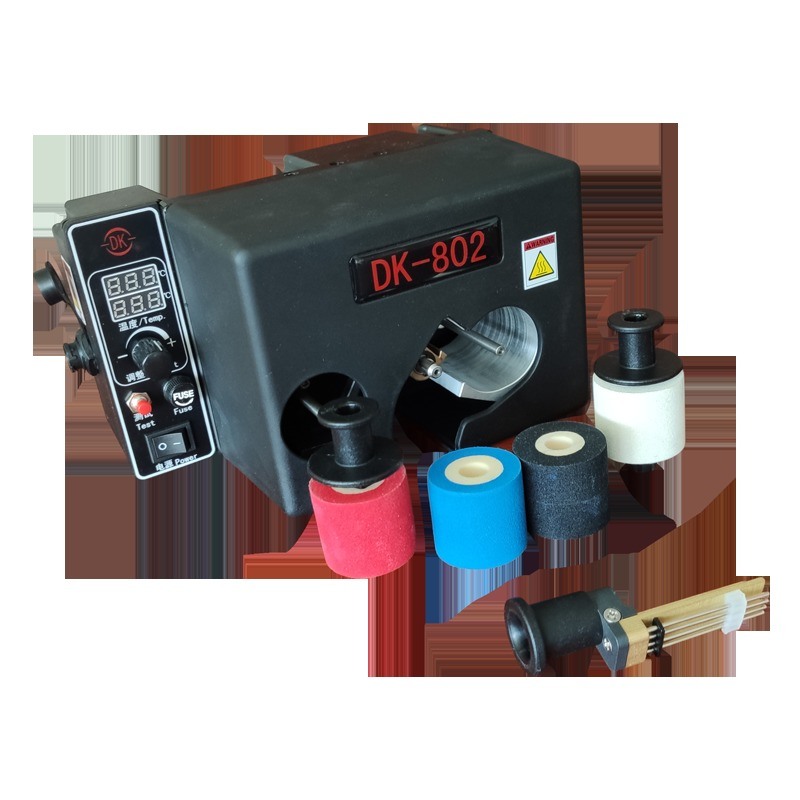

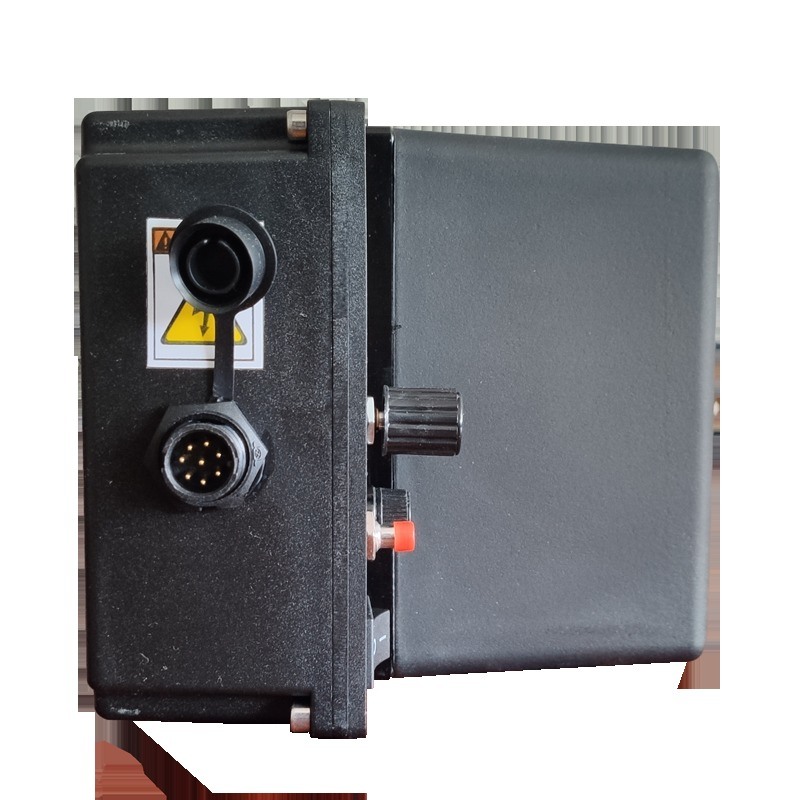

The DK-802 Intermittent Ink Roll Coder was developed by Dikai R&D as an upgraded version of the DK-801 model. This innovative coder combines the print head and control box into a single unit, significantly reducing costs while maintaining high performance.

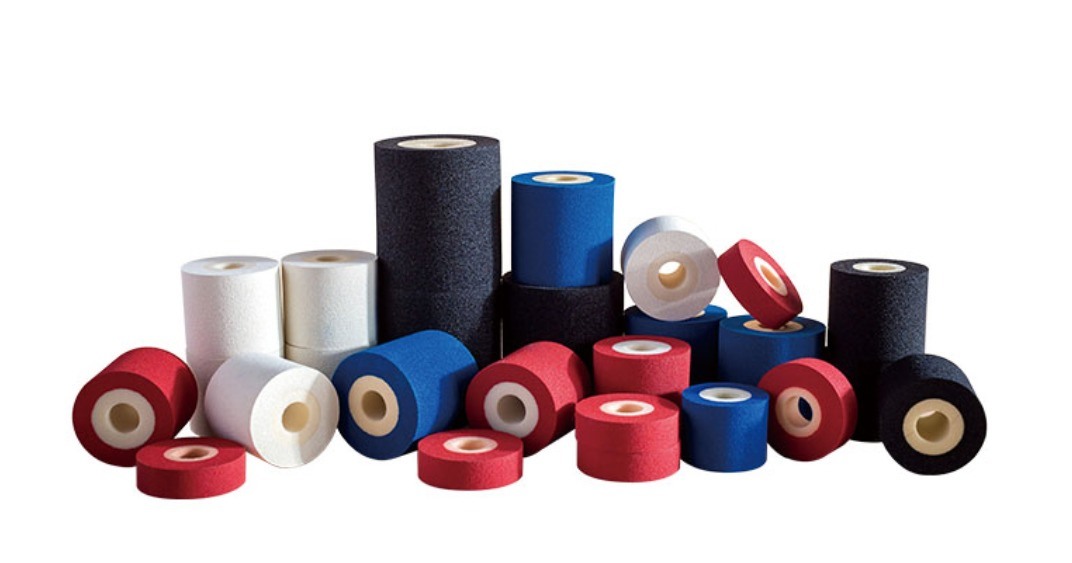

Designed for integration with intermittent packaging machines, the DK-802 efficiently prints essential information including dates and lot numbers. With a maximum speed of 150 ppm, it meets the requirements of most intermittent packaging systems. Compared to intermittent hot stamp coders, the DK-802 offers substantial savings through its economical hot ink roll consumables.
| Print Area | 40mm × 3 lines |
|---|---|
| Print Speed | Maximum 150 prints/minute |
| Print Lines | Maximum 3 lines, 20 characters/line |
| Font Size | Height 3.5mm × Width 1.5mm, 2mm, or 2.5mm |

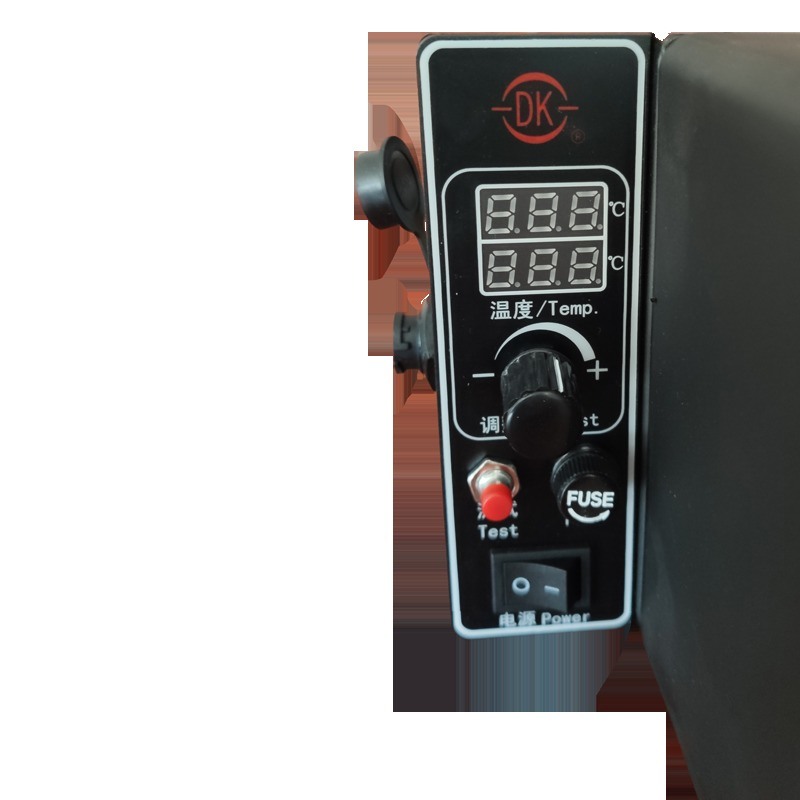

| Controller | LED Display |
| Ink Roll Size | φ36×32mm or φ36×40mm (recommended) |
| Power Supply | AC 220±10V, 50/60Hz, 130W, 2A |
| Operating Conditions | 4-40℃, 10%-95% humidity |
The DK-802 is packaged in durable cartons suitable for sea, air, or express courier shipping.
Our comprehensive technical support includes:
With 25 years of experience in coding machine development and manufacturing, we are committed to meeting diverse customer needs in coding and marking applications.
Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.
All products come with a standard 12-month warranty from the date of leaving our warehouse.
In countries with authorized distributors, we work through our local partners. Additionally, we provide direct online technical support and continuously updated video resources.
